This 300,000-mile Toyota 3RZ-FE tells two stories at once. This first is how this 2.7-litre inline-four earned its anvil reputation, and the second is how neglect can still kill a tough motor.
In a teardown filmed by the I Do Cars channel, the engine from a 2002 Tacoma arrived with milkshake oil (a mixture of coolant and lubricant in the crankcase) and uneven spark plug readings across cylinders. The likely culprit was a blown head gasket after overheating, a failure that lets coolant wash a cylinder, distort its surface appearance, and contaminate the oil. Even so, the long-running four still rotated freely on the stand.
Toyota launched the 3RZ-FE in 1994 for workhorse duty, replacing the 22R-E in markets that included Tacoma, 4Runner, Hilux, Land Cruiser Prado, and HiAce. On paper, it's modest (150 horsepower and 177 pound-feet), but its square 95-mm bore and stroke, chain-driven cams, and under-piston oil jets were built for abuse rather than bragging rights. Production wound down in 2004 — although a bit later in some markets — but the spec sheet helps explain why so many of these engines logged huge mileages in hard service. Let's take a closer look at this well-worn example.

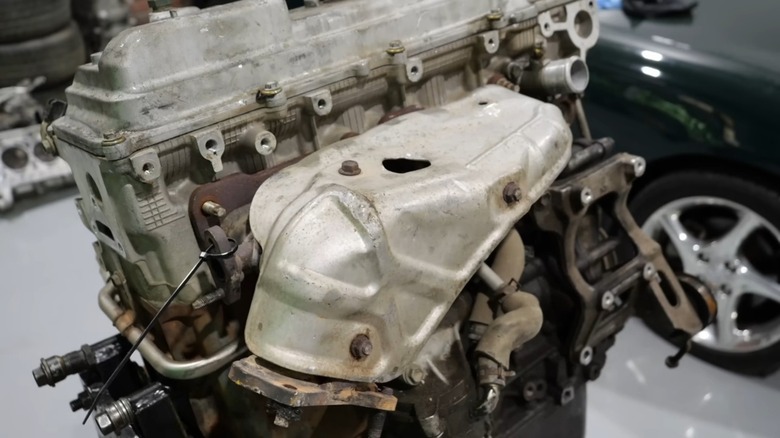

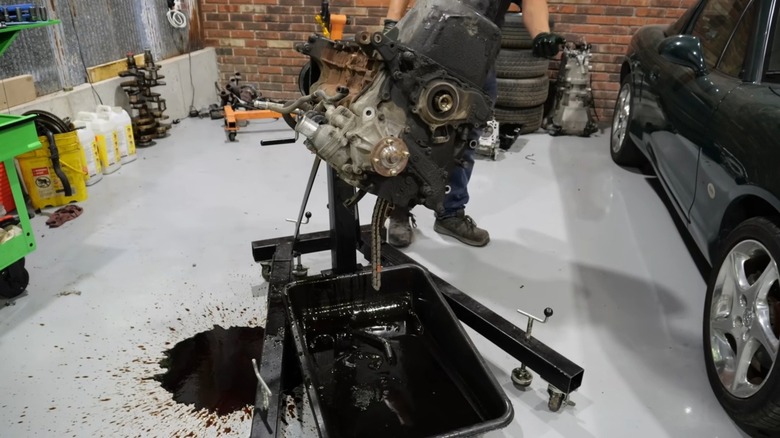

Crack the engine open, and the picture gets clearer. Milky oil and steam-cleaned cylinder walls are textbook head-gasket failure. The plugs read inconsistently, lean here and rich there, another sign of a motor running hot and serviced late. Yet the hard parts largely shrugged off the miles. The camshafts and journals showed minimal scoring, the forged crank spun true, and the main and rod bearings, likely original, were worn but serviceable for the mileage. The timing chain and guides, often a mid-life replacement on lesser engines, were still usable. With proper cleaning and a new head gasket, the host said it would likely run again.

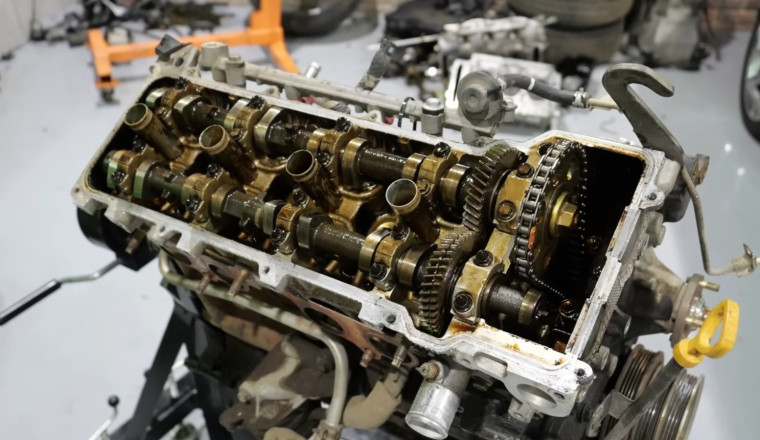

That resilience is baked into the design. The 3RZ uses a deep-skirt cast-iron block, an eight-counterweight forged crank, shot-peened carbon steel rods, and piston oil squirters. Dual balance shafts calm big-four vibrations. A chain drives the intake cam, which gears the exhaust cam, keeping the timing set simple and stout. Valve adjustment is by shim-over-bucket and needs periodic checks. None of this is flashy, but it is the sort of hardware that endures abuse when the basics are not skipped.
The post-mortem points to neglect rather than a design flaw. Uneven spark-plug readings, coolant-in-oil milkshake, and the tell-tale breach at the head gasket form a clear chain of evidence. Before a failure gets this far, owners usually see the warnings including contaminated oil at a change, white smoke on start-up or pull-away, or a temperature needle climbing under load. Sorting the cooling system, including radiator, water pump, hoses, and thermostat, before it overheats is often the difference between another 100,000 miles and a scrap pallet.
Owners valued 3RZ's low-stress output, real-world torque, and tolerance for heat and load, which is a big part of the reason why Tacomas and 4Runners routinely appear on high-mileage lists. A recent roundup found that the Tacoma has a strong chance of surpassing 250,000 miles, which squares with what this teardown shows: the bottom end can outlast the ancillaries if looked after.
