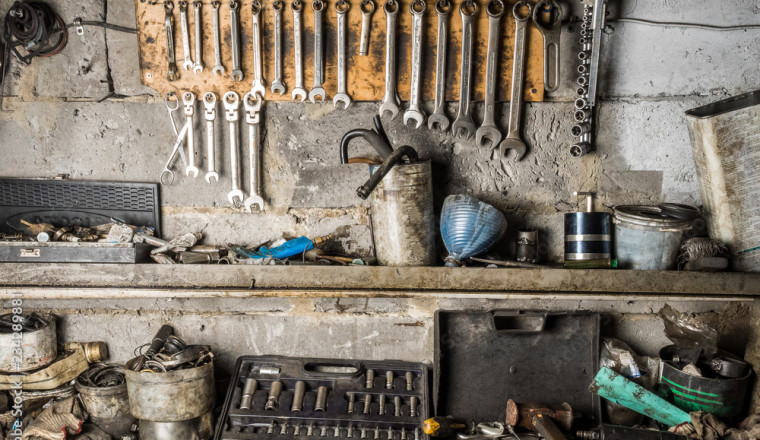

Walk into any modern auto shop and you'll find diagnostic computers worth more than entire tool collections from decades past. But buried in the back corners of old garages, wrapped in oil-stained cloth and gathering dust, lie the instruments that once defined automotive mastery. These aren't just tools. They're archaeological evidence of an era when fixing cars required intimate knowledge of mechanical systems that no longer exist.
The carburetor synchronization tool might be the most foreign concept to contemporary mechanics. Before fuel injection conquered the automotive world, performance engines often ran multiple carburettors that had to work in perfect harmony. Motorcycle mechanics and sports car specialists wielded these devices like tuning forks, using mercury columns or vacuum gauges to ensure each carburetor delivered precisely the same fuel mixture. The tool itself resembled a medical instrument more than automotive equipment, with delicate glass tubes and rubber hoses connecting to individual carburetor throats.
Even more specialized were float level gauges, precision instruments that measured carburetor float height to within thousandths of an inch. Set the float too high and the engine would flood. Too low and it would starve for fuel. The gauge required removing the carburetor top and carefully positioning a graduated rod against the float mechanism. Modern mechanics dealing with electronic fuel injection have never encountered anything remotely similar.
Ignition timing in the points and condenser era demanded its own arsenal of now obsolete tools. The dwell meter measured the electrical angle during which ignition points remained closed, typically reading 28 to 32 degrees for V8 engines. Point gap feeler gauges, razor thin metal strips usually set to 0.016 inches for most American cars, determined the physical separation between contact points. Get either measurement wrong and the engine would misfire, backfire, or refuse to start entirely.
The timing light with advance capability represents perhaps the most sophisticated of these vanished instruments. Unlike basic strobe timing lights, these units could display not just initial timing but the complete advance curve as engine RPM increased. Mechanics could verify that centrifugal weights and vacuum diaphragms were functioning correctly, adjustments that modern computer controlled ignition systems handle automatically.
Like this? Get the app: iOS | Android
Before 12 volt electrical systems became standard in the late 1950s, mechanics carried 6 volt test lights and specialized equipment for the lower voltage systems. Battery maintenance involved hydrometers, glass tubes with weighted floats that tested the specific gravity of battery acid to determine charge levels. These instruments required handling corrosive electrolyte that could blind or burn, a far cry from today's sealed maintenance free batteries.
Valve adjustment demanded its own category of tools when solid lifter engines ruled the roads. Mechanics used feeler gauges and specialized wrenches to set valve lash, typically to specifications like 0.012 inches intake and 0.018 inches exhaust for small block Chevrolet engines. Miss these adjustments and valves would burn or the engine would develop a distinctive ticking noise that marked sloppy workmanship.
Cooling system diagnosis required radiator pressure testers, hand pump devices that could pressurize the entire cooling system to locate leaks. Antifreeze protection levels were measured with hydrometers calibrated to show freeze protection temperatures. Thermostat testing involved specialized containers with built in thermometers where mechanics could verify that thermostats opened at their rated temperatures, usually 160 to 195 degrees Fahrenheit depending on the application.
The brake system tools of yesteryear would seem particularly archaic to modern technicians accustomed to disc brakes and ABS systems. Brake shoe arc grinders contoured replacement linings to match drum curvature exactly. Wheel cylinder hones, essentially flexible shaft mounted stones, restored cylinder bore surfaces that had developed ridges from corrosion or wear. Brake drum micrometers measured internal drum diameter to determine if drums could be safely turned on a lathe or needed replacement.
These tools didn't disappear because they were inadequate. They vanished because the automotive systems they served evolved beyond recognition. Fuel injection eliminated carburettors. Electronic ignition made points and condensers obsolete. Hydraulic valve lifters ended the need for valve adjustments. Sealed cooling systems reduced maintenance requirements.
Yet something was lost in this technological progression. The old tools demanded understanding of underlying mechanical principles. A mechanic who could properly synchronize multiple carburettors understood fuel metering in ways that scanning trouble codes cannot teach. The intimate knowledge required to set ignition timing by ear and feel created craftsmen who could diagnose problems that sophisticated computers might miss.
Today's automotive technicians are undoubtedly more efficient and their diagnostic capabilities far exceed what any timing light or dwell meter could provide. But those oil stained tool rolls gathering dust in forgotten corners of old garages tell the story of an era when fixing cars was as much art as science, and when mechanical sympathy meant the difference between a running engine and an expensive pile of metal.
Research sources: Classic automotive repair manuals, vintage tool catalogs, and technical documentation from the Society of Automotive Engineers archives.
